Wavy Nozzle
The Wavy Nozzle gives you the ability to distribute coolant oil or air from the nozzle system in a fixed or reciprocating motion for productivity improvement of the cutting process.
Wavy Nozzle Benefits
The Wavy Nozzle gives you the ability to distribute coolant oil or air from the nozzle system in a fixed or reciprocating motion for productivity improvement of the cutting process.
Wavy Nozzle Benefits
- The benefit of removing chip
-
- Decreases damage to the product
- Increases processing precision
- Prevents breakage of cutting tools
- Decreases machine down time
- Promotes continuous automatic operation of the machine
2.Coolant oil is consistently directed to each tool correctly.
3.Chips will not accumulate on the processing table.
Operation Mode
1)FIX Mode
Nozzle is fixed at adjustable angles.
2)SWEEP Mode
Nozzle sweeps in a uniformed motion from a programmed range of motion.
3)KICK Mode
Nozzle “kicks” in a rapid acceleration from a programmed range of motion.
Using a dedicated controller, the operation mode, angle and speed can be programmed into Wavy Nozzle’s memory. (Teaching Playback)
Operators can call up the desired mode.
Operators can apply suitable Wavy Nozzle modes to each cutting tool.
e.g.) MM01 (Memory No.01) : Mode SWEEP, Angle 05~10, Speed 50
MM02 (Memory No.02) : Mode KICK, Angle 06~10, Speed 10
Wired and Wireless Controller
Wired and Wireless Controller
Wireless model is controlled via a dedicated iOS app (iOS device is not included)
Simple Machine Monitoring System
The Wavy Nozzle iOS app can monitor machine conditions in real-time. Up to 50 machines can be registered.
Important point about wireless models
The wireless model can only be used in countries where this unit is wirelessly approved.
The wireless model option is currently available in the following countries:
Japan, United States of America, Canada, Europe (CE marking applied country), Thailand
Product Specifications
* Please refer to the attached file

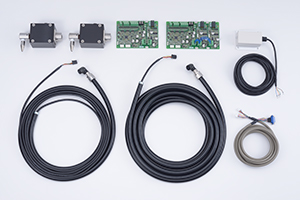

Basic Line-ups
Model | Controller | Ejection Unit |
Nozzle Cable |
Motor Driver |
Control Board |
Wireless Module |
Controller Relay Cable |
---|---|---|---|---|---|---|---|
WN-11H | Wired | 1 | 1 | 1 | 1 | – | 1 |
WN-11R | Wireless | 1 | 1 | 1 | 1 | 1 | – |
WN-12H | Wired | 2 | 2 | 2 | 1 | – | 1 |
WN-12R | Wireless | 2 | 2 | 2 | 1 | 1 | – |
“Wavy Nozzle” is registered trademark of MinebeaMitsumi Inc.
Japan registered trademark : No. 5645210
“FANUC” and “ROBODRILL” are trademarks or registered trademarks of FANUC Corporation
iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc.
Engineering Information
Technical Data
Usage
Installed machine example videos
Machinery type | Machine manufacturer | Model | Injection point | Injection video |
---|---|---|---|---|
Machining center | FANUC | ROBODRILL | Main spindle | VIDEO 1 |
DMG MORI | NVX5100 | Main spindle | VIDEO 2 |
|
Auto-lathe | TSUGAMI | B0205- | Back operation tool | VIDEO 3 |
CITIZEN MACHINERY | L20 | Main spindle | VIDEO 4 |
|
CITIZEN MACHINERY | M32 | Main spindle(Air injection) | VIDEO 5 |
Comparison videos with and without Wavy Nozzle
Machinery type | Machine manufacturer | Model | Comparison | Operation video |
---|---|---|---|---|
Machining center | FANUC | ROBODRILL | Chip residue on workpiece | VIDEO 6 |
Auto-lathe | CITIZEN MACHINERY | M20 | Chip winding around the tool | VIDEO 7 |
CITIZEN MACHINERY | M32 | Chip winding around the tool | VIDEO 8 |
Installation effect data
Effect | Material | TARGET | Effect detail | Document |
---|---|---|---|---|
Yield improvement | SUS303 | GROOVE | Chip remaining on workpiece | Result 1 |
SUS303 | OUTER DIAMETER ・ V-GROOVE | Dent on the workpiece | Result 2 | |
SUS316 | OUTER DIAMETER | Dent on the workpiece | Result 3 | |
SUS416 | OUTER DIAMETER | Dent on the workpiece | Result 4 | |
SUS303 | OUTER DIAMETER | Dent on the workpiece | Result 5 | |
SUS303 | OUTER DIAMETER | Dent on the workpiece | Result 6 | |
SUS303 | OUTER DIAMETER | Dent on the workpiece | Result 7 | |
Tool cost reduction | S50C | END MILL | Tool life | Result 8 |
SS400 | TAP | Tool life | Result 9 | |
SS400 | DRILL | Tool life and Surface quality | Result 10 | |
Productivity improvement | SS400 | END MILL | Cleaning | Result 11 |
SUS303 | OUTER DIAMETER | Reduction of chip removal work | Result 12 |
